- Brand: Gigabyte
- Model: C621-SD8
- Form Factor: CEB
- CPU Socket Type: Dual LGA 3647
- CPU Type: 1st and 2nd Generation Intel® Xeon® Scalable Processors
- Chipset: Intel® C621 Chipset
- Number of Memory Slots: 8 × 288pin
- Memory Standard: Support for DDR4 2666 MHz memory modules if use a Skylake CPU
Support for DDR4 2933 MHz memory modules if use a Cascade lake CPU
Support for ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS memory modules - Maximum Memory Supported: 8x DDR4 DIMM sockets supporting up to 1 TB of system memory
- Channel Supported: 8 channel memory architecture (4 channel per CPU)
- Multi-Gpu: Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
- Storage: 1x M.2 connector (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support)
8x SATA 6Gb/s connectors (I-SATA0~I-SATA7)
2x SATA 6Gb/s connectors (S-SATA0, S-SATA1) - Raid:
Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the installation notices for the PCIEX4_2, M.2 and SATA connectors. - Usb Ports: 5x USB 3.1 Gen 1 ports (2 ports on the back panel, 1 port onboard, 2 ports available through the internal USB header)
2x USB 2.0/1.1 ports available through the internal USB header - Audio: Realtek® ALC1220-VB codec
High Definition Audio 2/4/5.1/7.1-channel
Support for S/PDIF Out - Slot:
2x PCI Express x16 slots, running at x16 (PCIEX16_3, PCIEX16_5)
1x PCI Express x16 slot, running at x8 (PCIEX8_1)
2x PCI Express x8 slots, running at x8 (PCIEX8_2, PCIEX8_6)
1x PCI Express x8 slot, running at x4 (PCIEX4_4) - Lan:
1x Realtek RTL8211E chip (10/100/1000 Mbit) (LAN1)
2x Intel® 210AT GbE LAN chips (10/100/1000 Mbit) (LAN2, LAN3) - Wireless: None
- Internal Connectors: 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x CPU fan headers
6 x system fan headers
1x M.2 Socket 3 connector
10x SATA 6Gb/s connectors
2x SATA DOM power headers
1x PMBus connector
1x Intel® VROC Upgrade Key header
1x front panel header
1x USB 3.1 Gen 1 header
1x USB 3.1 Gen 1 port
1x USB 2.0/1.1 header
1x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1x serial port connector
1x chassis intrusion header
3x SATA SGPIO headers
1x SMD_VMD header
1x IPMB connector
1x SMB connector
1x wake on LAN header
1x Clear CMOS jumper
1x VGA jumper
1x Watch-Dog timer jumper
1x VRM SMB Clock jumper
1x VRM SMB Data jumper
1x UID button
1x buzzer - Back Panel Ports: 1x D-Sub port
3x RJ-45 ports
2x USB 3.1 Gen 1 ports - LED Lighting: Support RGB Lighting Effect in Full Colors with RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips
- Dimensions: 24.4 x 24.4 cm
- Operating System: Windows server 2012/2016/2019
Linux
VMware EXSi 6.5/6.7 - Warranty: Chính hãng 3 năm
- Giao hàng: Toàn quốc. Miễn phí phạm vi nội thành TP.HCM (Chính sách giao hàng Nguyễn Đức)

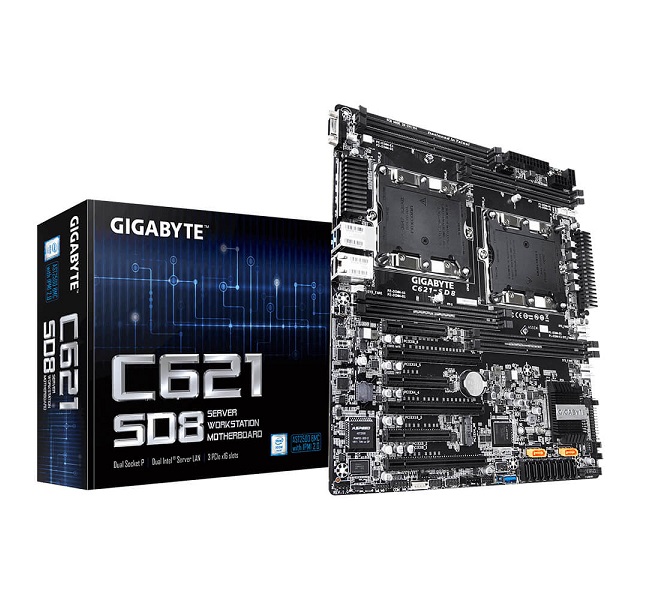

Main Gigabyte C621-SD8
Giá: 12,250,000₫ (Giá bao gồm VAT)
Giá trước đây 12,490,000₫ Tiết kiệm 2%
Số lượng:
